Vaccum De-Watering System

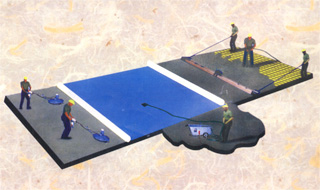

Process:

  • Concrete is poured at one end
  • A man with a poker vibrator initially settles the concrete
  • Then the screed vibrator is brought by two men to do the leveling
  • Then the 2 filter mats each ( 11.5' X 8.5' ) is applied below
  • Above a top mat of ( 15' X 15' ) is applied for suction
  • Due to vacuum created between the top mat and the concrete floor the excess water is sucked in by the machine and let out
  • After the process it is suitable for the power floater application for rough finish
  • The power trowel comes for smooth finish

Benefits:

  • Increased Comprehensive Strength
  • Earlier utilization of floors
  • Lower permeability due to denser floors
  • Reduced cracking
  • Rapid completion of floors
  • Reduced man power and time
  • Minimum shrinkage and hence no curling



Vaccum Dewatering Machine
(7.5 HP) FM-VDS-7.5

Specifications:

  • Power: 7.5 HP 3 phase ELGI / HAVELL'S / KIRLOSKAR 1440 rpm electric Motor
  • Vacuum pressure: 700 mmHg
  • Top mat size: 15 feet X 15 feet
  • Filter mat size: 11.5 feet X 6.5 feet
  • Pump capacity: 100m3 / hr

Vaccum Dewatering Machine
(5 HP) FM-VDS-5

Specifications:

  • Power: 5 HP 3 phase ELGI / HAVELL'S / KIRLOSKAR 2880 rpm electric Motor
  • Vacuum pressure: 650 mmHg
  • Top mat size: 15 feet X 15 feet
  • Filter mat size: 11.5 feet X 6.5 feet
  • Pump capacity: 90m3/ hr






Vaccum De-Watering System
  (7.5 HP) FM-VDS-7.5
  (5 HP) FM-VDS-5
Power Trowel
Power Floater
Double Speed Power Floater
Groove Cutting Machine
Earth Rammers
Screed Vibrator
Paver Block Cutting Machine
